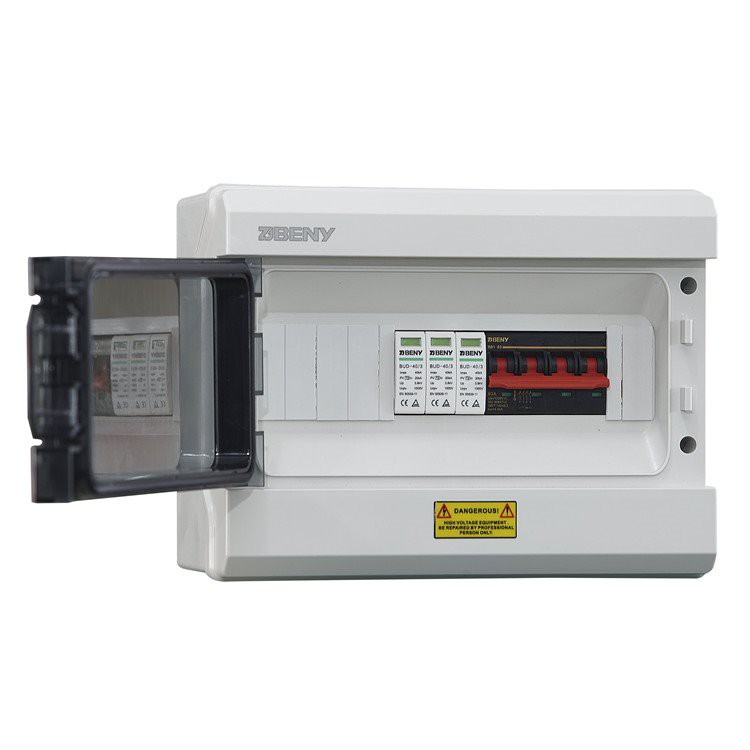

2 input 1 output 600VDC / 1000VDC
IP65 DC string box is designed for 2 string PV system.
For surge protection and current protection at solar DC side.
DC Breaker
*UL489B PV standard and design
*Over-load and short-circuit Protection
*Non Polarity for easier wiring
DC SPD
*New IEC 61643, UL1449
*Designed for solar PV protection
*Higher capacity In 20KA ( IEC, UL )
*Response time <25ns
Specification | ||
Model Number | BHS-2/1 | |
Input | 2 strings | |
Output | 1 strings | |
Max Voltage | 600V | 1000V |
Rated Current of DC Breaker | 25A | 25A |
Max Current Output | 63A | 40A |
Enclosure | ||
Material | Poly carbonate/ABS | |
Degree of Protection | IP65 | |
Impacts | IK10 | |
Dimensions (W*H*D) | BX-13: L290*W220*H120mm | |
Input Cable Glands | PG09, 2.5-16 | |
Output Cable Gland | PG21, 2.5-16 | |
Environment | ||
Operating temperature | -25℃ - +60℃ | |
