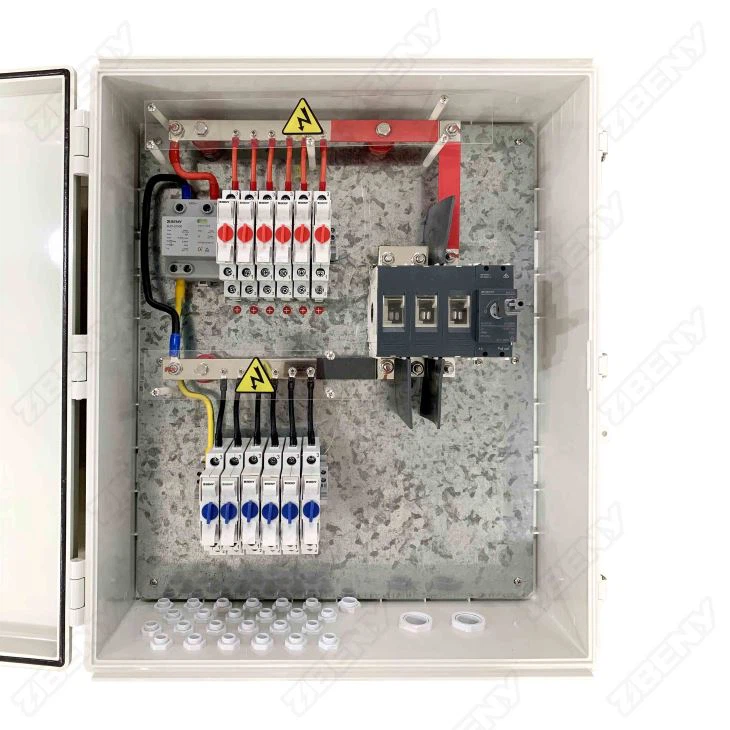

1500Vdc Solar Disconnect Combiner Box
The most compact and cost-efficiency combiner for 1500V solar PV systems, thanks to the DC components including 2P fuse holders and UL98B, IEC60947 Standard disconnect. The 4 pole DC Disconnect up to 1500V at 250A.
1500V finger safe touch DC fuse holders for both positive and negative poles for over-current protection.
1500V DC surge protection type 2 to protect the DC strings from over-voltage. (type 1+2 for option)
Customized solutions are available to meet specific needs of different solar systems.
Features:
*Rated for 1500VDC
*UL98B listed and IEC 250A integrated disconnects
*Up to 18 input circuits and customized solutions
*Type 2 DC surge arrester and Type 1+2 for option
*Finger safe touch fuse holder at 2P
*NEMA4X, IP65 UV resistance polycarbonate enclosure
Model | BHS-12/1 1500V |
Certificate | TUV |
Standard | IEC62109 IEC61439 |
Warranty | 5 Years for any quality problems |
Voltage | 1500V |
Protection Degree | IP65 |
Dimension | 650*550*185mm |
