Product Overview
ZBENY The BDM5-630 DC molded case circuit breaker is mainly applied in photovoltaic power generation systems and other new energy circuit systems, including photovoltaic combiner boxes, photovoltaic inverters,photovoltaic DC cabinets, etc. With rated voltages of DC 2000V and DC 1500V and a rated current up to 630A,it can quickly interrupt the fault current of the DC power distribution system, ensuring the reliable operation of the solar photovoltaic power generation system.
Appearance introduction
1 Brand
2 Product Model
3 Instantaneous Current Setting Value
4 Rated Ultimate/Operating Short-Circuit Breaking Capacity
5 Rated Operating Voltage
6 Compliance with Standards
7 Certification Mark 8 Rated Operating Current
Product Features
- Easy to install, compact in size
- High breaking capacity,excellent insulation performance
- Overload protection, short-circuit protection
- Zero arcing
- Rated voltage up to DC 2000V
- Rated current up to 630A
- The product complies with the standards. GB/T 14048.2 IEC 60947-2 EN 60947-2
SPECIFICATION
| Model | BDM5-630 |
| Poles | 2P |
| Standard | GB/T 14048.2,IEC 60947-2,EN 60947-2 |
| Rated Working Voltage (Ue) | DC 1500V,DC2000V |
| Max Rated Current (Ith) | 630A |
| Rated Current (In) | 200A, 225A, 250A, 315A, 350A, 400A, 450A, 500A, 630A |
| Rated Insulated Voltage (Ui) | 2300V |
| Mechanical Cycle |
5000 |
| Electrical Cycle | 200 |
| Rated Impulsed Voltage (Uimp) | 15kV |
| Protection Level | IP20 |

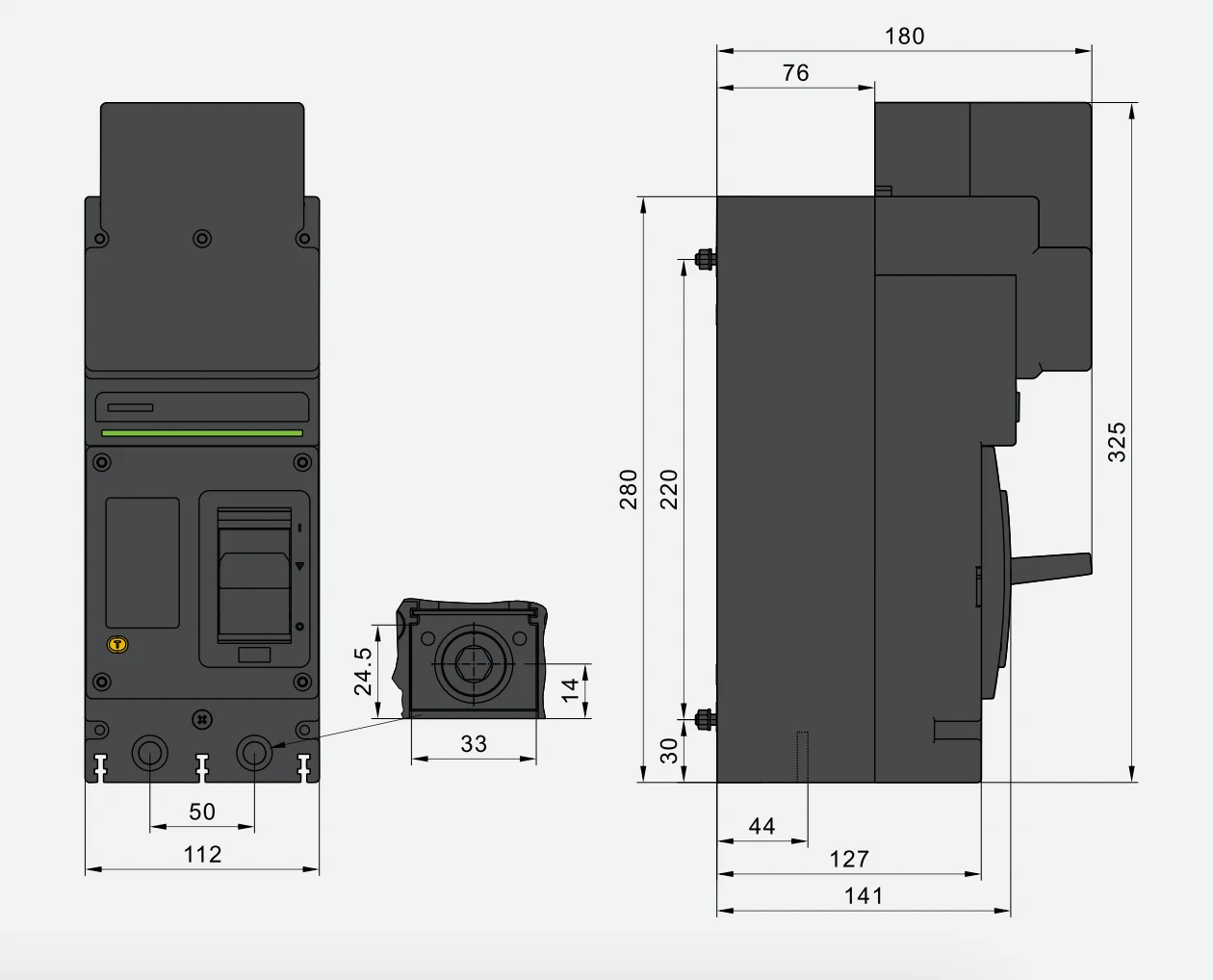

Overall Dimensions (mm)

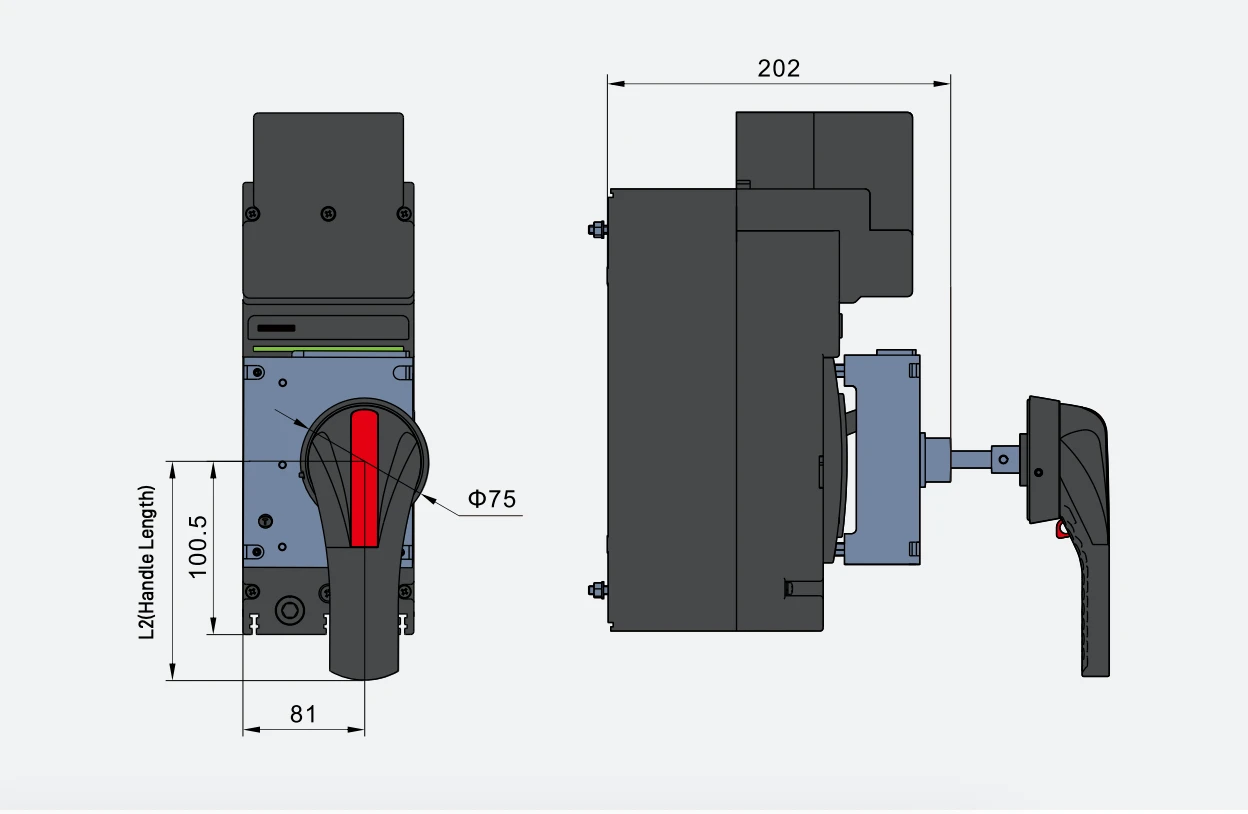

Side-Mounted Manual Operating Mechanism Dimensions (mm)

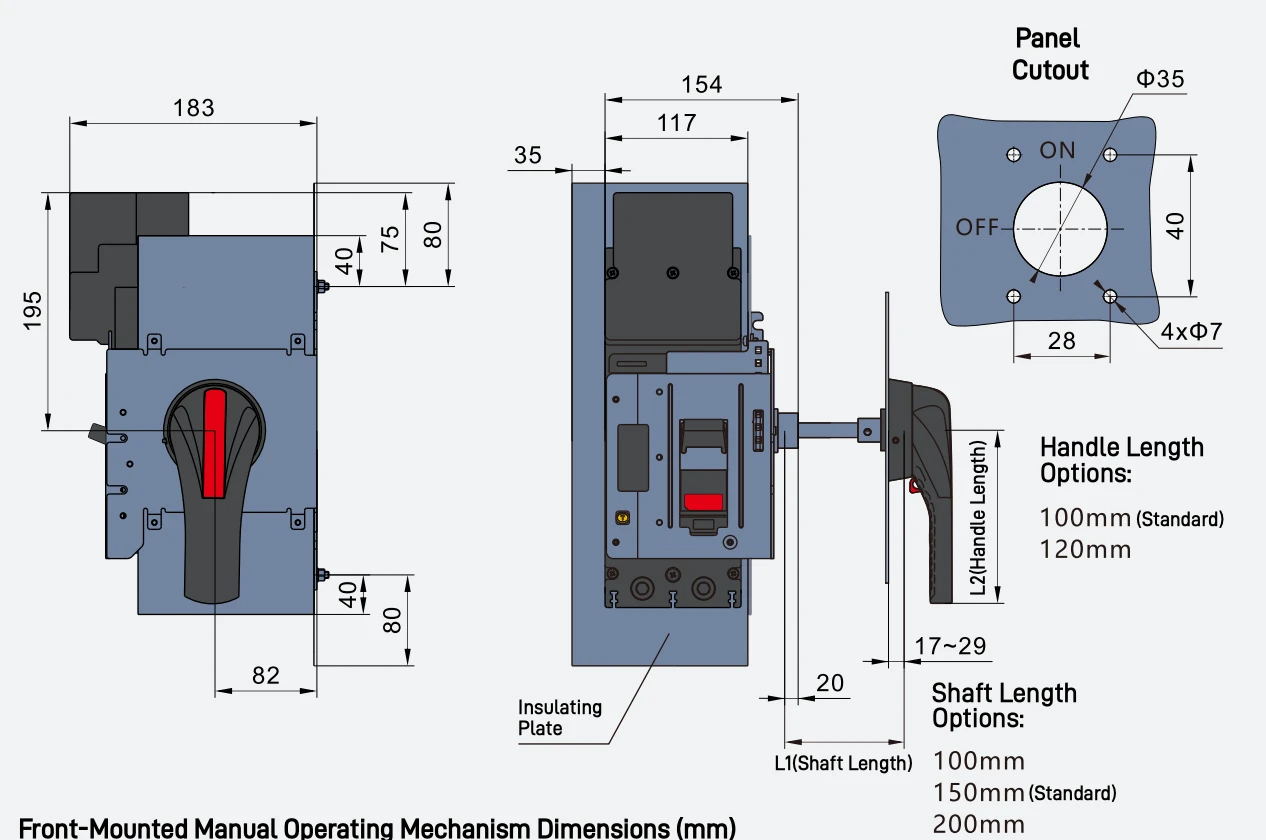

Front-Mounted Manual Operating Mechanism Dimensions (mm)

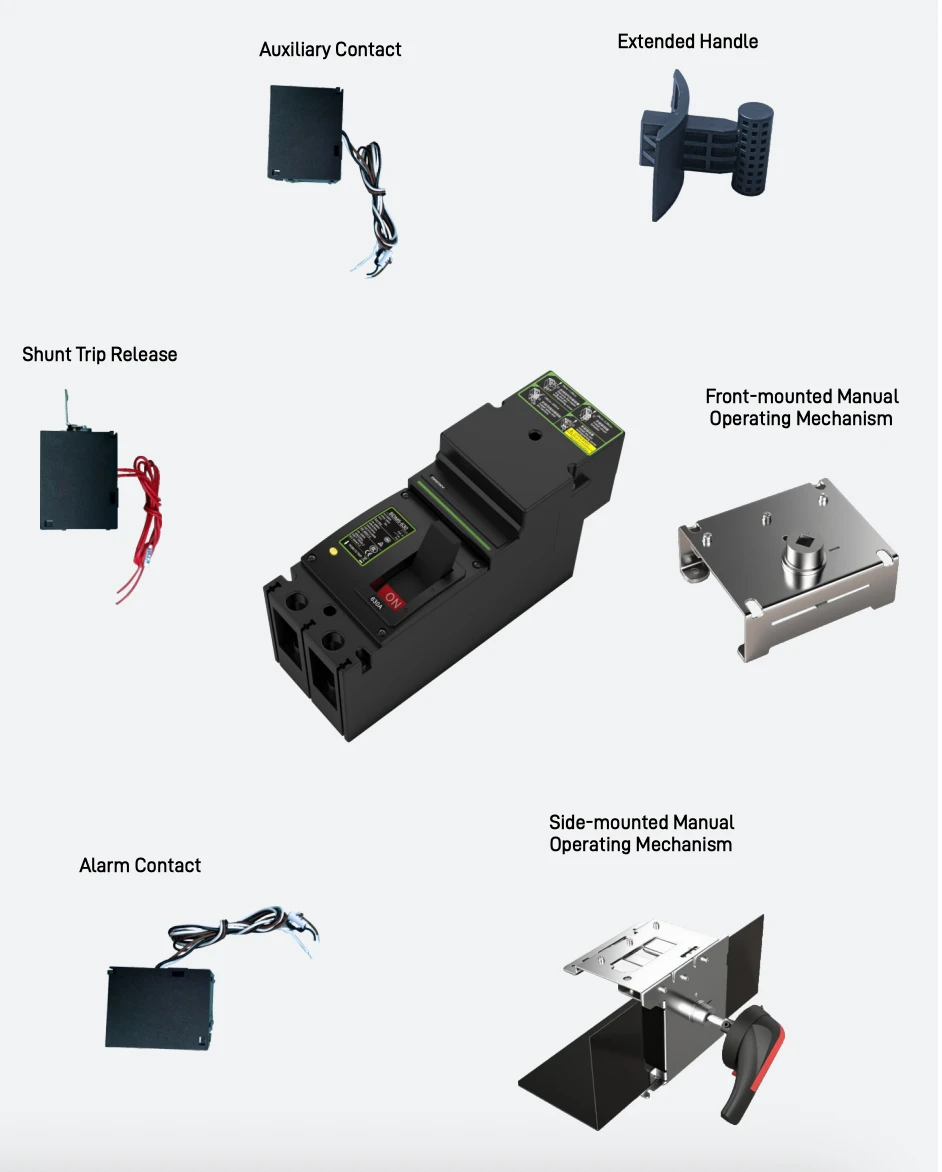

Accessory
