DC Isolator MC4

DC isolator with MC4 connectors BYT-32M. Solar installers always need better products to finish the work faster and easier, the DC isolator with MC4 is one of the choices for saving time. And No worries about water leakage cause by wrong installation and operation. And there is one more pair of...

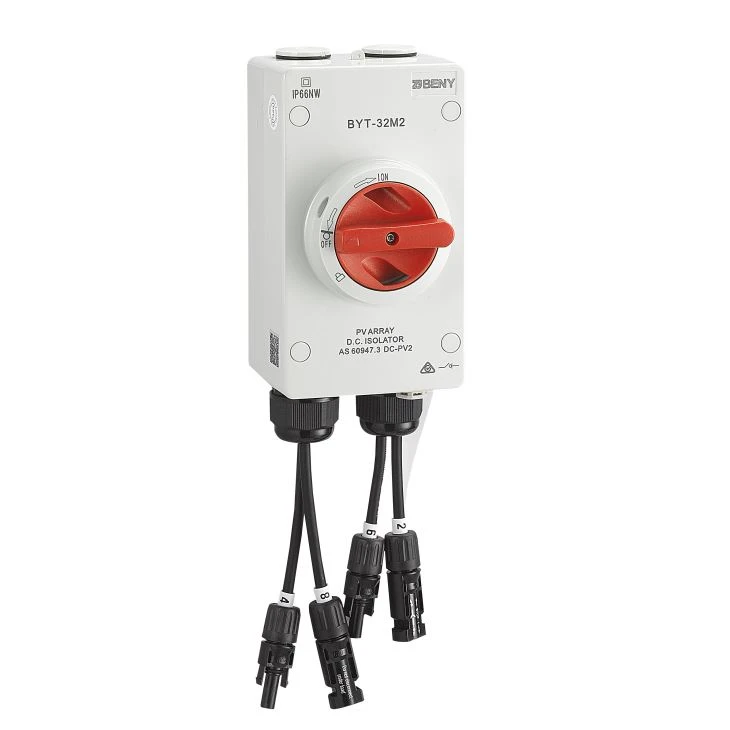

DC isolator with MC4 connectors BYT-32M.

Solar installers always need better products to finish the work faster and easier, the DC isolator with MC4 is one of the choices for saving time. And No worries about water leakage cause by wrong installation and operation.

And there is one more pair of MC4 as accessories in the package for wiring the cable to DC isolators.

The UV resistance and flame retardant enclosure is made of 100% polycarbonate material, will operate well on the roof, and supply IP66-IP67 degree protection to the switch inside.

Each DC isolator is compliance with the newest AS60947.3:2018 and IEC60947-3 PV standard.

Electrical Characteristics

Standard

IEC60947-3 / AS60947-3:2018

Category

DC-PV2 / DC-32B

Pole

4P for 1 string

Rated Operational Voltage

500V 600V 800V 1000V 1200V

Arcing time

<3ms

Cycle Operation

Mechanical

20000

Electrical

2000
