Solar DC Disconnect Switch (PV DC Isolator Switch) up to 2000V 630A

The BH-630H Series Solar DC Disconnect Switch is a high-performance PV DC Isolator Switch designed for utility-scale solar power plants, commercial photovoltaic systems, and battery energy storage systems (BESS). Rated up to DC 2000V and 630A, it provides safe and reliable DC circuit isolation for inverters, combiner boxes, battery cabinets, and other high-voltage DC applications.

Designed in accordance with IEC 60947-3, the switch delivers dependable load disconnection, excellent electrical endurance, and long-term operational reliability under demanding environmental conditions. It is an ideal solution for solar EPC contractors, inverter manufacturers, energy storage integrators, and electrical equipment OEMs requiring high-current DC isolation.

BENY bh-630 630A 2000v dc isolator switch

Key Features：

DC 2000V / 630A High-Capacity Switching

Designed for next-generation photovoltaic and energy storage systems, the BH-630H supports up to 2000V DC and 630A, meeting the requirements of high-power solar installations and large-scale battery energy storage projects. The DC-PV2 utilization category ensures reliable load switching under demanding DC operating conditions.

Reliable DC Isolation for Maximum Safety

The switch provides safe electrical isolation during equipment maintenance, emergency shutdowns, and system servicing. Advanced arc-extinguishing technology minimizes arcing during switching, helping improve personnel safety and protect valuable electrical equipment.

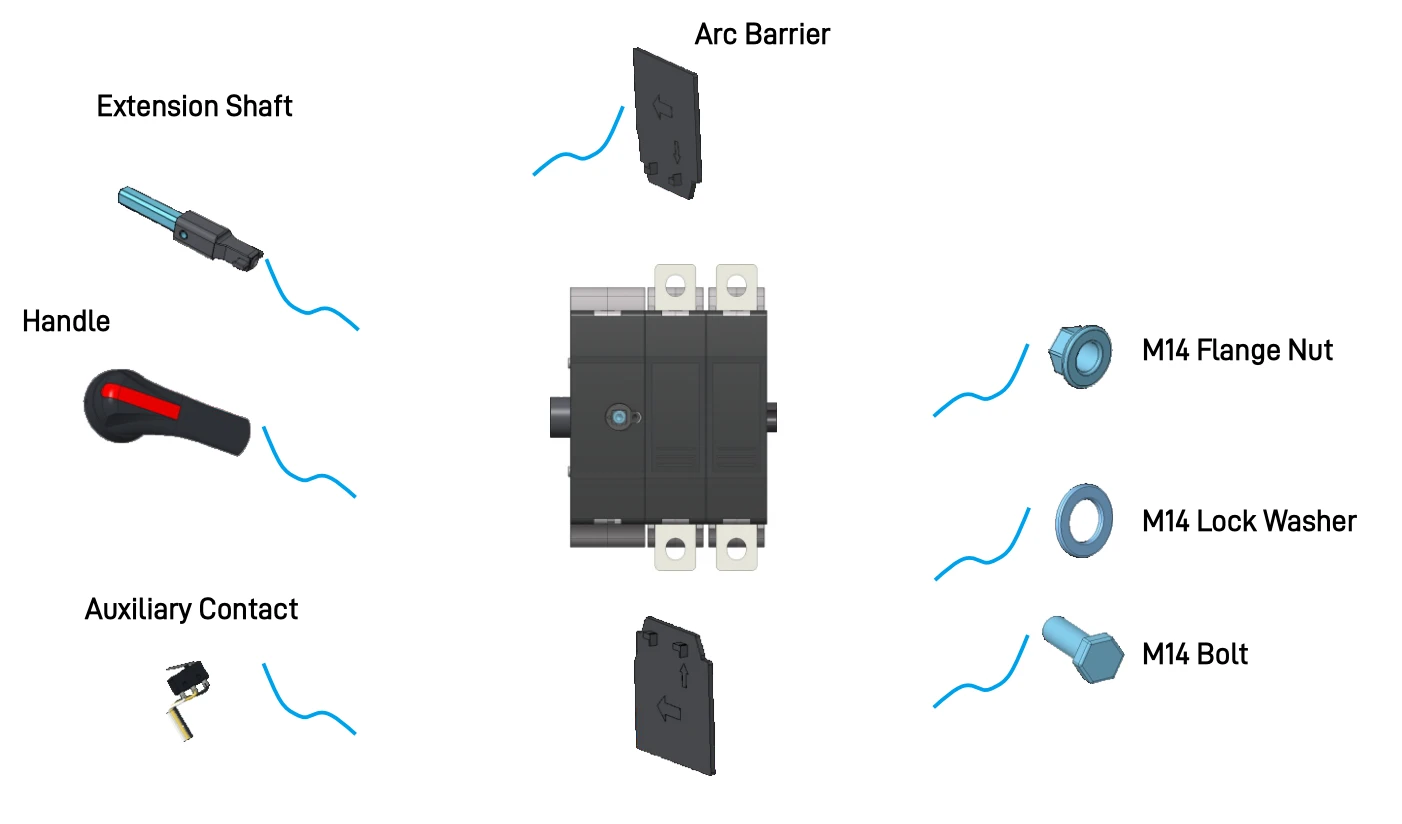

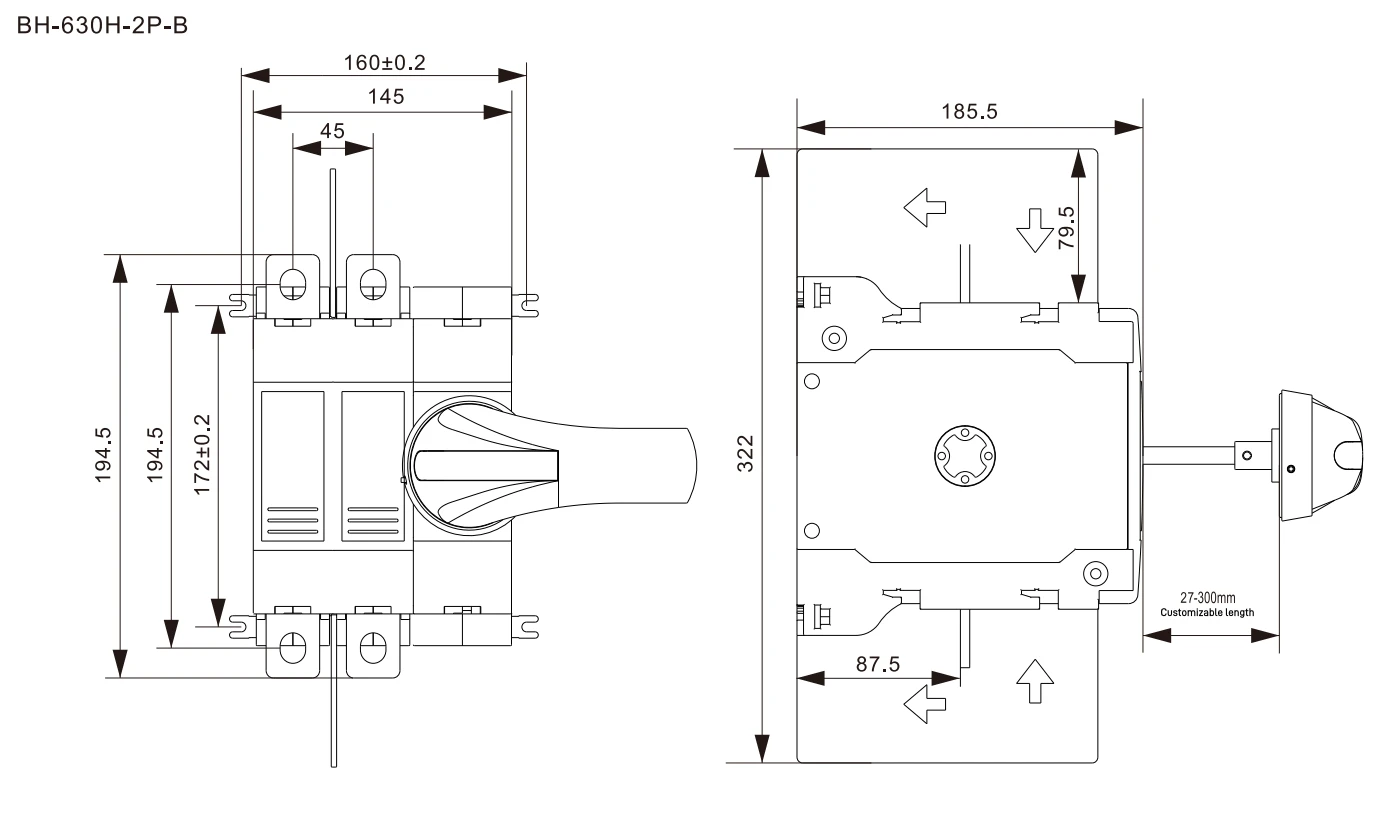

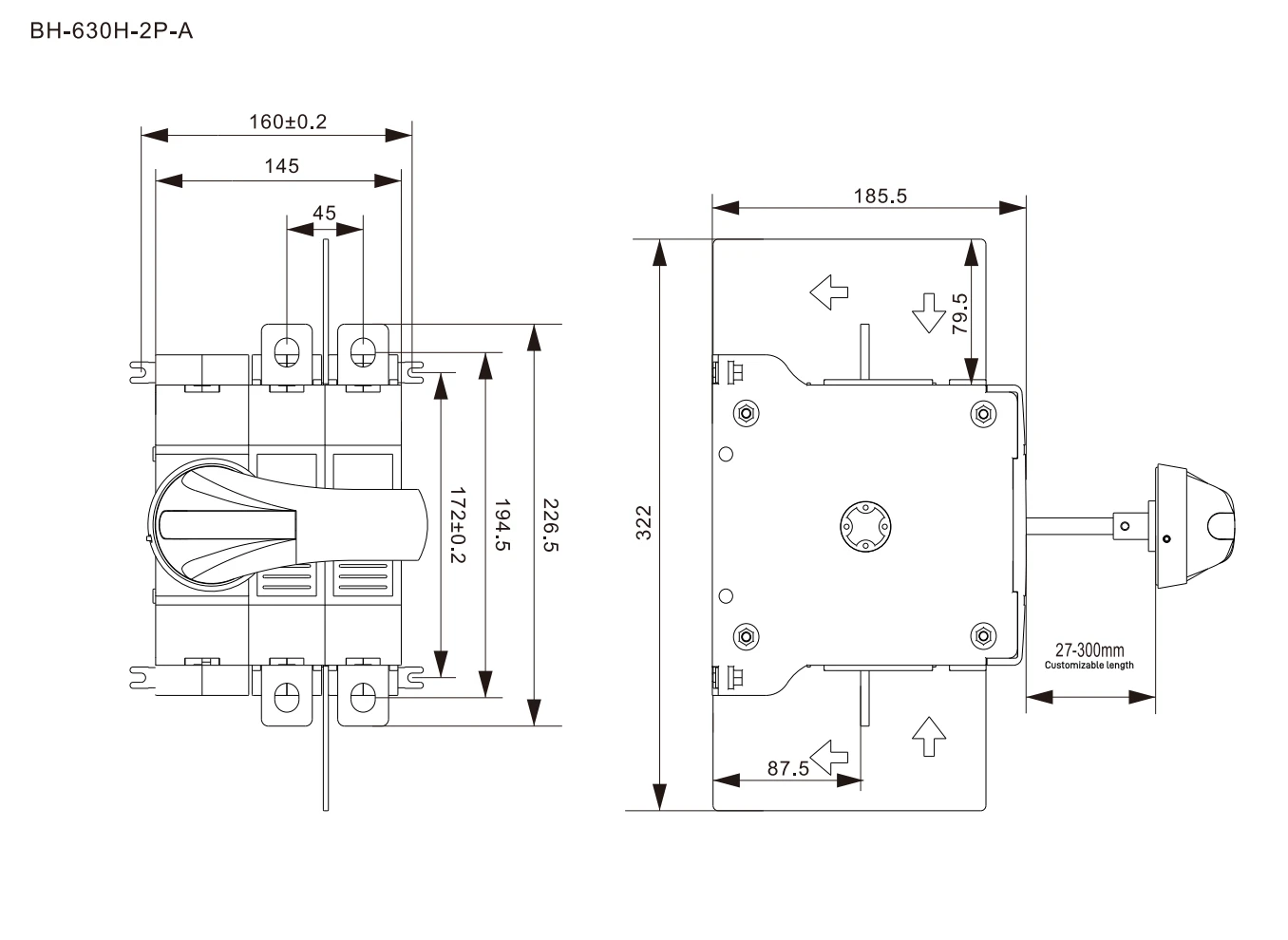

Flexible Installation Options

Available with front-mounted, side-mounted, and external operating mechanisms, the switch can be easily integrated into combiner boxes, inverter cabinets, ESS enclosures, and customized electrical panels, simplifying equipment design and installation.

Full-Rated Current without Derating

Optimized contact design keeps the temperature rise to only 40K at the rated current of 630A, complying with IEC and GB standards. This enables continuous operation at full load without current derating, improving overall system efficiency and reliability.

Low Auxiliary Power Consumption

The motorized operating mechanism requires only 40W during operation, reducing auxiliary energy consumption while ensuring fast and reliable switching performance.

Designed for Harsh Environments

Engineered for demanding outdoor applications, the BH-630H operates reliably in ambient temperatures up to +70°C and installation altitudes of 5,000 meters, making it suitable for desert solar farms, mountain PV plants, and other challenging environments.

SPECIFICATION

Electrical Characteristics
Rated Working Voltage (Ue)	2000V DC
Rated Current (Ie)	630A	800A
Rated Impulse Withstand Voltage (Uimp)	12kV
Rated Short-Time Withstand Current, 1 s (Icw)	10kA
Rated Short-Circuit Making Capacity (Icm)	10kA
Contact Resistance	＜0.5mΩ
Installation Environment
Utilization Category DC	DC-PV2	DC-PV1
Number of cycles of operation(With current)	200	100
Number of cycles of operation(Without current)	5,000
Poles	2
Mounting	Base Screws Mounting
Screw for Mounting (M5)	2.0–3.0 N·m
Wiring Screw (M14)	According to IEC 60947-1, 20 N·m
Ambient temperature allowed between	−40°C to +85°C
Storage temperature allowed between	−40°C to +85°C
Relative Humidity	90%
Pollution Degree	3
IP rating terminals	IP20
Outside the ark handle	IP66
