The BENY Portable EV Charging Cable is a convenient, portable, and plug-and-play way to Power your Electric Car. This product is independently researched and in accordance with all the latest IEC standards. It can be used on any electric vehicle. This cable delivers high performance when charging with the reassurance of advanced electric protections and a direct human-computer interaction interface. The control box enjoys an ergonomic surface design which makes the shell become both solider and stronger.
SPECIFICATION
| Models | BCPP-A1-16 | BCPP-A2S-32 | BCPP-AT2S-32 | BCPP-A2S-40 |
| European standard | American Standard | |||
| Maximun Power | 3.7kw | 7.4kw | 22kw | 9.6kw |
| Input/Output Voltage | AC230 1-Phase | AC400 3-Phase | 240VAC,1Φ,Max. Max.120V to Ground | |
| Charging Current Range | 8A-16A | 6A-32A | 6A-32A | 6A-40A |
| Frequency | 50HZ/60HZ | |||
| Display | OLED Screen+ LED Light | Five-inch touch screen + LED Light | ||
| Wall-mounted | ✖ | ✔ | ✔ | ✔ |
| Adjustable Current | ✔ | ✔ | ✔ | ✔ |

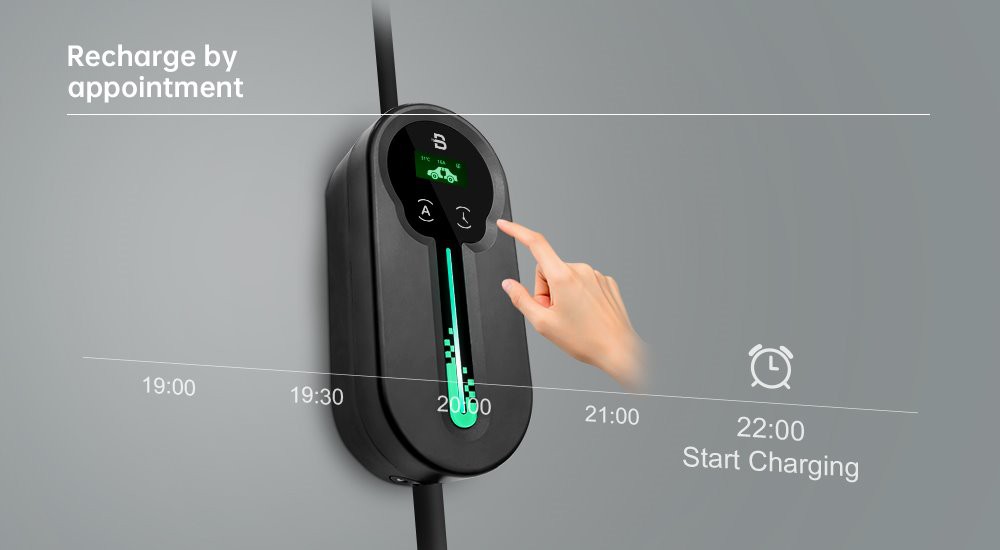

| Timed Charging | ✔ | ✔ | ✔ | ✔ |
| Plug options | ✔ | ✔ | ✔ | ✔ |
| Weekly Reservation Charging | ✖ | ✔ | ✔ | ✔ |
| History Charging Records | ✖ | ✔ | ✔ | ✔ |
| Bluetooth | ✖ | ✔ | ✔ | ✔ |
| WIFI | ✖ | ✔ | ✔ | ✔ |
| APP | ✖ | ✔ | ✔ | ✔ |
| CP Signal Abnormal Protection | ✔ | ✔ | ✔ | ✔ |
| Over Voltage Protection | ✔ | ✔ | ✔ | ✔ |
| Under Voltage Protection | ✔ | ✔ | ✔ | ✔ |
| Over Current Protection | ✔ | ✔ | ✔ | ✔ |
| Leakage Protection | ✔ | ✔ | ✔ | ✔ |
| Over Temperature Protection | ✔ | ✔ | ✔ | ✔ |
| Relay Adhesion Protection | ✔ | ✔ | ✔ | ✔ |
| Lightning Protection | ✔ | ✔ | ✔ | ✔ |
| Fire Protection | ✔ | ✔ | ✔ | ✔ |
| Anti-pressure Protection | ✔ | ✔ | ✔ | ✔ |
| Ground Protection | ✔ | ✔ | ✔ | ✔ |
| Working Life | <10000 times | |||
| Plug Cable Length | 1m | |||
| Total Length | 7m as standard (Customized length available) | |||
| IP Protection | IP66 | |||
| Operating Temperature | -30℃ ~ +50℃ | |||
| Operating Altitude | <2000m | |||
