DC Isolator Switch 4P 63A

DC Isolator Switch 4P 63A

Mini DC isolator switch 4P 1200V 63A 4P switch BB1H-63 with 1200V voltage and max current up to 63A. Use in 1 string or 2 strings solar systems, as a DC isolator disconnector between solar panels and inverter, or any DC current strings systems like UPS battery system, off grid solar PV systems....

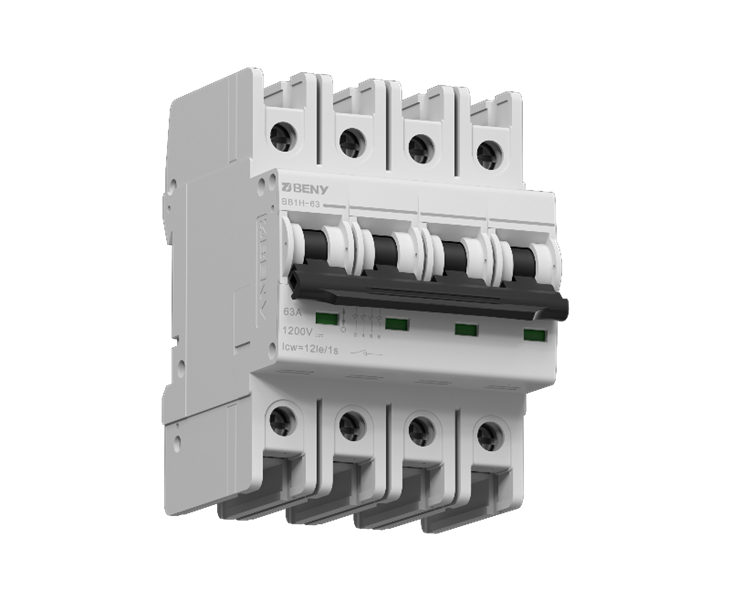

Mini DC isolator switch 4P 1200V 63A

4P switch BB1H-63 with 1200V voltage and max current up to 63A.

Use in 1 string or 2 strings solar systems, as a DC isolator disconnector between solar panels and inverter, or any DC current strings systems like UPS battery system, off grid solar PV systems.

ZJBENY focus on DC industry and focus on quality always.

We are supplying the best after sale service to customers, and safety to many solar PV projects around the world.

Electrical Characteristics

Standard

IEC60947-3

Category

DC-PV1 / DC-32B

Pole

4P

Rated Operational Voltage

1200V

Current

63A

Arcing time

<3ms

Cycle Operation

Mechanical

20000

Electrical

2000


Hot Tags: DC isolator switch 4P 63A, China, suppliers, manufacturers, factory, customized, quotation
