Molded Case Switch

Molded Case Switch

DC Molded Case isolator switch 4P BDH series molded case 4P DC isolator switch rated voltage 1200V, the current range from 80A to 630A. Normally use in solar ground systems, in the solar combiner boxes from 5 strings to 24 strings. Meet the IEC 60947-3 standard for solar PV. ZJBENY produces the...

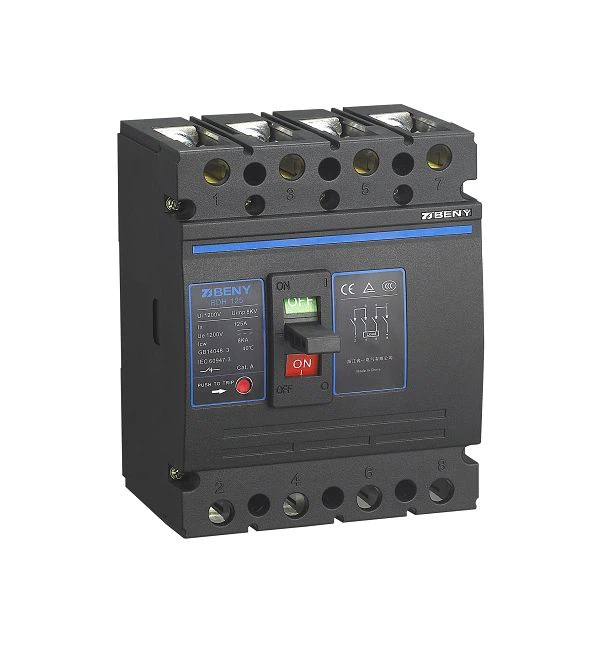

DC Molded Case isolator switch 4P

BDH series molded case 4P DC isolator switch rated voltage 1200V, the current range from 80A to 630A. Normally use in solar ground systems, in the solar combiner boxes from 5 strings to 24 strings. Meet the IEC 60947-3 standard for solar PV.

ZJBENY produces the DC components in own factory, assemble and test the combiner box with ZJBENY components, the best components make the best result.

Electrical Characteristics

Standard

IEC60947-3

Category

DC-PV1 / DC-32B

Pole

4P

Rated Operational Voltage

1200V

Current

80A-630A

Arcing time

<3ms

Cycle Operation

Mechanical

14000

Electrical

2000
