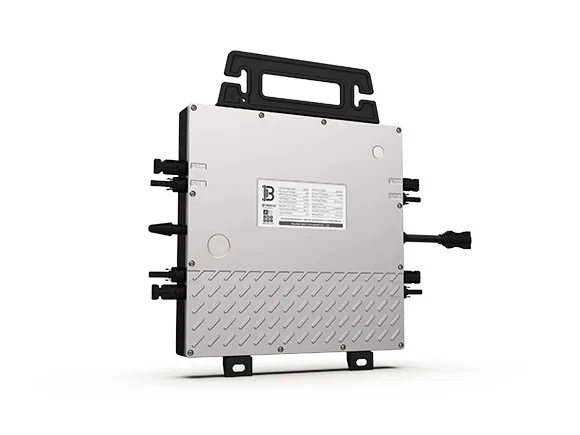

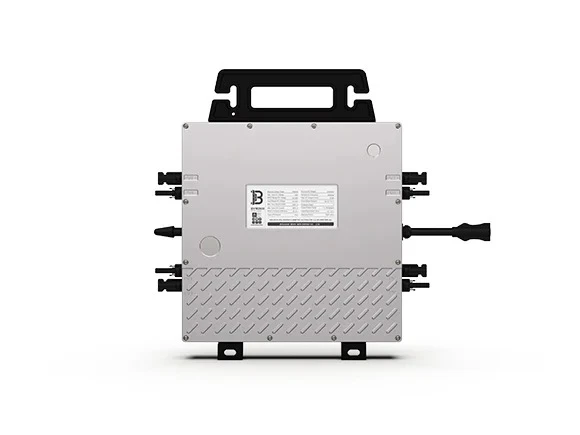

With the rated output power of 2400W, the BENY BYM2400 microinverter connect to 4 panels and enable module-level maintenance and management by monitoring power generation of each module.
Module-level data can be uploaded to the monitoring platform via BENY data transfer units through PLCC/WIFI.
The products are fully designed, with real materials, the main control chips, power devices, magnetic components and resistance components are all selected from the top international manufacturers, MTBF> 25 years. The structure and heat dissipation design are fully designed to ensure that it can still work at full load when the ambient temperature is 55℃.
Compared with APsystems, Hoymiles, and Deye, BENY Micro-inverter has the most outstanding performance.
BENY Quad-In Micro-inverter has the highest output power (rated, peak), input current (short-circuit, continuous) and conversion efficiency (peak, weighted), far superior to the competition.
Compliance：
VDE-AR-N 4105, EN50549-1, NC RFG, C10/11, INMETRO ABNT ABR 16149/16150/62116, CEI-0-21, AS/NZS 4777, VFR2019, G98, IEC/EN61000, IEC/EN62109
- * Recommend (450-750W)*4, 60, 66, 72 Cell PV Modules
- * Static MPPT efficiency 99.80%
- * Peak efficiency 97.5%
- * EURO efficiency 97%
- * High reliability, IP67 (NEMA 6) enclosure, 6000 V surge protection
| Input Data(DC) | |
| Model | BYM2400 |
| PV module power range(recommended) | (450W-750W)*4, 60~75 Cell/120~150 Sub Cell |
| (350~550W)*8 parallel, 66~75 Cell/132~150 Sub Cell | |
| MPPT voltage range | 24V-50V |
| Operating voltage range | 16V-60V |
| Maximum DC input voltage | 60V |
| Maximum short circuit input current | 20×4 |
| Maximum continuous input current | 18Aⅹ4 |
| Output Data(AC) | |
| Rated output power | 2400VA |
| Rated voltage/range | 230V/176-265V |
| Rated frequency/range | 50Hz/60Hz (46.5-61)Hz |
| Maximum continuous output current | 10.43A |
| Maximum harmonic distortion | <3% |
| Power factor | >0.99(Default) |
| Maximum connection number in one string | 2 units(30A circuit breaker, 10AWG cable) |
| Efficiency | |
| Peak efficiency | 97.50% |
| European efficiency | 97% |
| MPPT efficiency | 99.80% |
| Night power consumption | <100mW |
| Other parameters | |
| Communication method | PLCC/WIFI Optional |
| Safety protection class | Class I |
| Enclosure rating | IP67 |
| Operating temperature | -40℃ to +70℃ |
| Storage temperature | -40℃ to +85℃ |
| Weight(kg) | 9.56 |
| Relative humidity | 0-98% |
| Transformer design | High frequency transformer, Electrical isolated |
| Overvoltage class | OVC III (AC main circuit),OVC II (PV) |
| Warranty period | 10 years / 25 years(Optional) |
|
Safety regulations |
VDE-AR-N 4105, EN50549-1, NC RFG, C10/11,
INMETRO ABNT ABR 16149/16150/62116, CEI-0-21, AS/NZS 4777, VFR2019, G98,IEC/EN61000, IEC/EN62109 |
|
||
